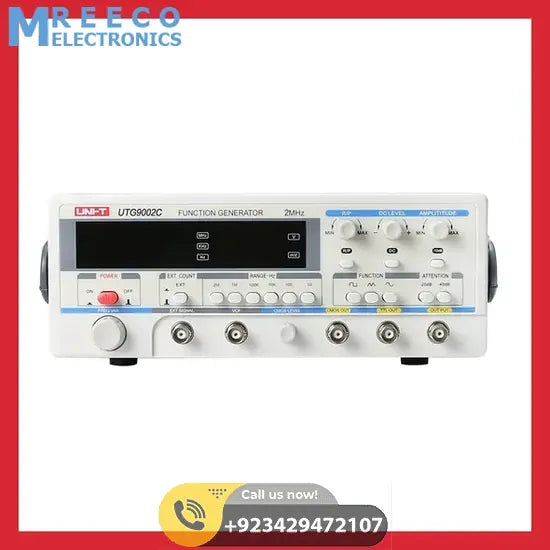

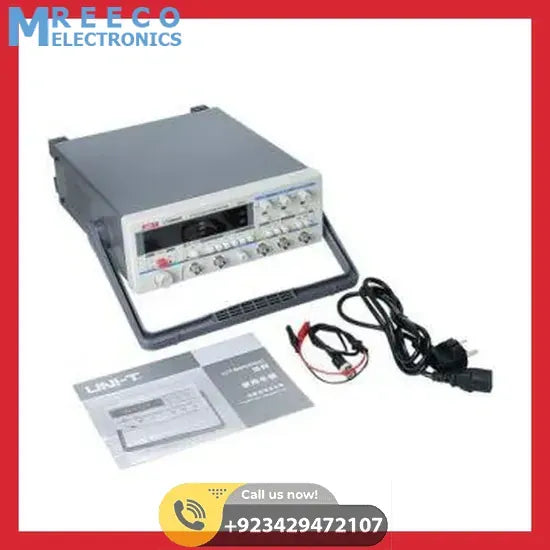

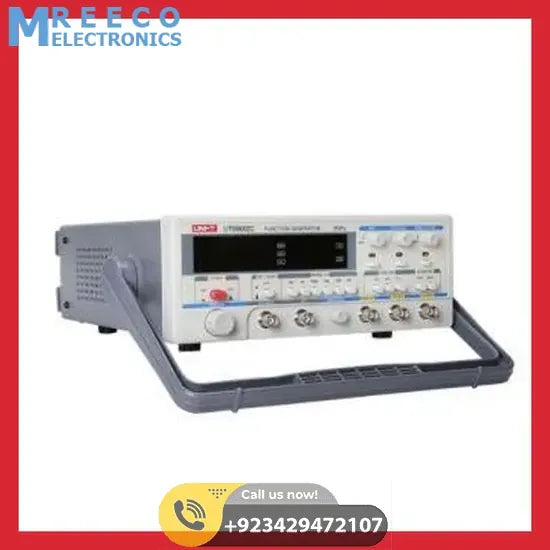

UTG9002C Function Generator, Waveform, Wave Generator in Pakistan
In stock
UTG 9000C series function generators can produce sine, square, triangle, pulse, and sawtooth waveforms, etc. The frequency range is wide and the highest value can be 10MHz. Manufactured by UNI-T, the DC level, and dut...
Ask about this product on WhatsApp- Fast deliveryFree shipping on prepaid orders above Rs. 10,000
- Secure payment100% secure payments by Meezan Bank
- SupportMonday to Saturday, 11:00 AM to 8:00 PM
- ReturnsSee our return and refund policy
Description
UTG 9000C series function generators can produce sine, square, triangle, pulse, and sawtooth waveforms, etc. The frequency range is wide and the highest value can be 10MHz. Manufactured by UNI-T, the DC level, and duty ratio are adjustable. Some other features are VCF, TTL level output, and display of output signal, amplitude, and frequency at the same time. They can simply be used as a frequency meter in outside testing. With excellent amplitude and frequency characteristics and the rise time of square waveform≤50nS, the electrical specifications reach international standards of the same type of products. They are exquisite and can be widely used in factories, schools, and R & D institutions.
| Features | Range |
| Model | UTG9002C |
| Waveforms | Sine, Square, Triangle, Pulse, Sawtooth etc. |
Amplitude:
| Range (no load) | from 1mVpp to 20Vpp |
| Accuracy | ≤±5% (1KHz Triangle 20Vp-p) |
| Resolution | 0.1mV |
Frequency:
| Range | from 0.2Hz to 2MHz |
| Accuracy | ≤±1% |
| Resolution | 1mHz |
| Output Power | 2Wp-p |
| Output Impedance | 50Ω |
| Attenuator | 20dB + 40dB |
| DC Offset | from -10V to +10V |
| Display | Frequency: 4-digits-LED, Amplitude: 3-digits-LED |
| Duty Cycle | from 10% to 90% |
| Distortion of Sine | ≤2% |
| Rise time of Square | ≤50ns |
| VCF | 100:01:00 |
Frequency Counter:
| Frequency Range | from 0.2Hz to 2MHz |
| Amplitude Range | from 0.5Vp-p to 5Vp-p |
| Input Impedance | 10kΩ |
Device Characteristics:
| Power | AC 220V，50Hz |
| Product Color | White and Gray |
| Product Net Weight | 2.5 Kg |
| Product Size | 320mm×240mm×100mm |
| Standard Accessories | BNC to Alligator Clips, Power Cord |
| Standard Individual Packing | Gift Box, English Manual |
| Standard Quantity Per Carton | 6 Pcs |
| Standard Carton Measurement | 660mm×410mm×600mm |
| Standard Carton Cross Weight | 18 Kg |
Package includes:
- 1x Function generator device
Specifications
| Brand | UNI-T |
|---|---|
| Category | Lab Equipments |
| SKU | TMD1,Th6,KRT |
| Availability | In stock |
