VFD CNC Water cooled spindle Motor kit 220V 800W 1HP Spindle Motor & 1500W VFD & Cooling Water Pump & 65mm Clamp Mount In Pakistan

Features And Specifications Of VFD CNC Water cooled spindle Motor kit 220V 800W 1HP Spindle Motor & 1500W VFD & Cooling Water Pump & 65mm Clamp:

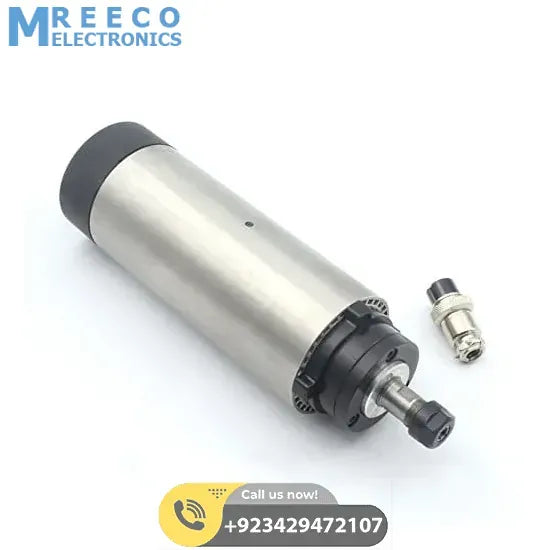

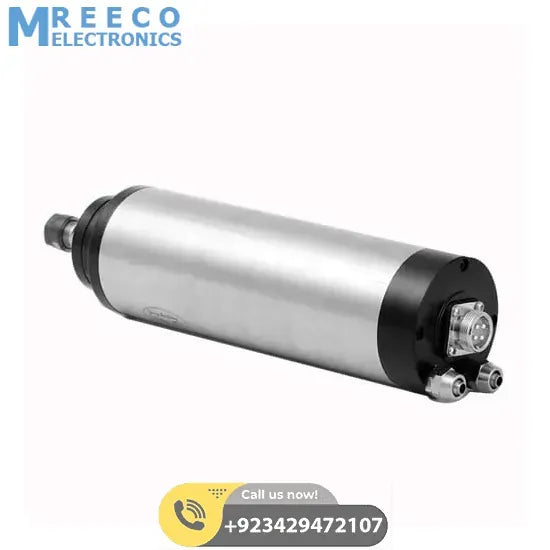

1. 800W Water-cooled spindle motor engraving milling grinds 65x170mm:

• Size:65mm
• Power:800W
• Voltage:220V
• Frequency:0-400Hz
• Speed:0-24000rpm
• Water Cooling ER11 collet
• Runout off:less than 0.005mm
• 4pcs bearing C7002*2 C7002*2
• Grease Lubrication

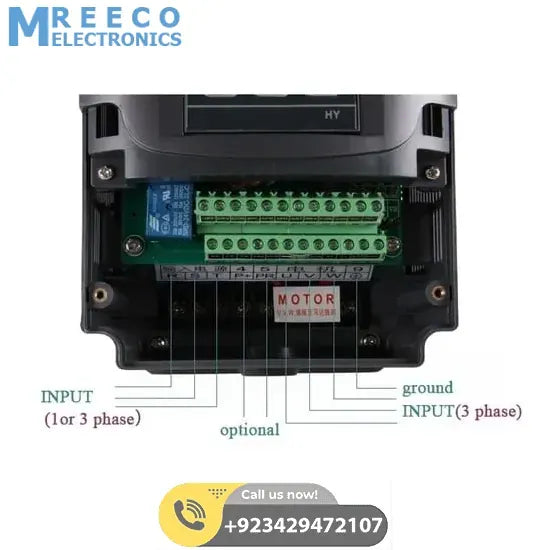

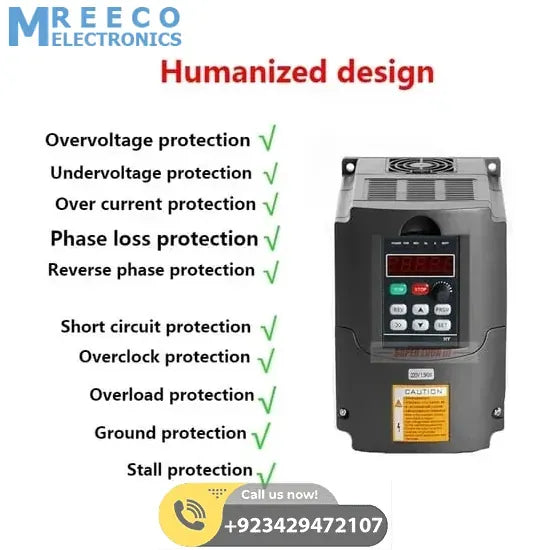

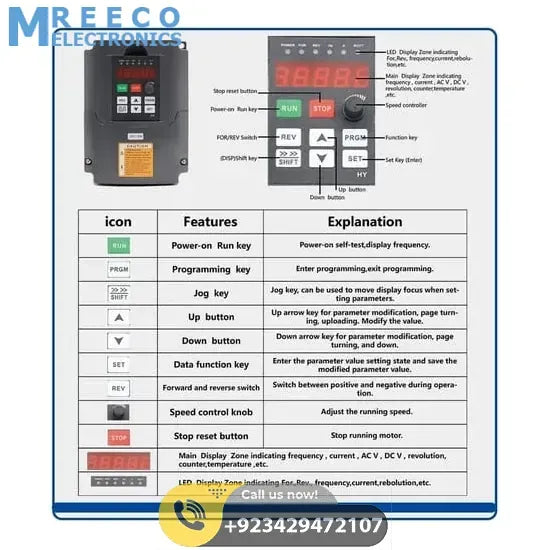

2. Variable Frequency Drive VFD Inverter 1.5KW:

• PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability
• Rated Power:1.5KW
• Input
• Voltage: 220V
( /-15%)
• Output:0-220VAC 3-phase
• Input Frequency: 48-63 Hz
• Output Frequency: 0-400 Hz
• Input Phase: 1 or 3 phase
• Output Phase: 3 phase
• Auto voltage regulation (AVR) technique, for ensuring the inverter load capability
• With perfect error protection and short circuit starting protection capability
• Dead-time compensation and auto torque slip compensation function, can realize 180% high torque output at low frequency 0.25Hz

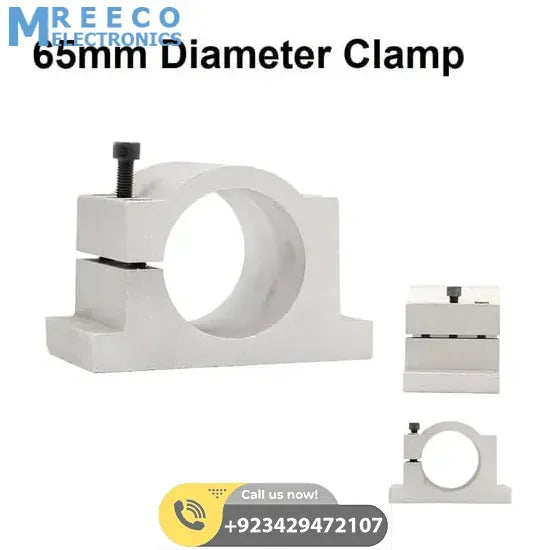

3. 65mm Motor Clamp Mount:

• Compared with the aluminium profile fixture, the accuracy is much higher, and it is hard to deform.
• The inner wall is very smooth, outer walls is sandblasted
• The cast aluminium fixture is much heavier than the aluminium profile fixture.
• Diameter: 65mm
• Material: Cast Aluminium

4. 220V-75W Water Pump:

• The shell is made of high-quality plastic, which is anti-corrosive and high durable
• Max Head: 3.2 m
• Power: 75w
• Maximum flow: 3200L / H
• Plug Cord Length: 1.4m
• Voltage: 220V
• Frequency: 50 HZ
• Outlet size: 4 and 6 mm
• Dimensions: 145 * 110 * 90 mm
• High Lift, Large Flow Rate, Highly Durable, Excellent Insulation

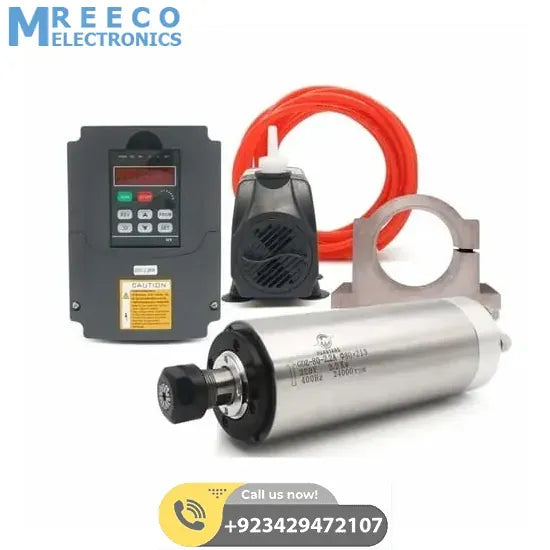

Package Include:

• 1 x 220V-2.2KW VFD
• 1 x 220V- 800W Water Cooled Spindle Motor
• 1 x 220V-75W Water Pump
• 1 x 65mm Motor clamp mount

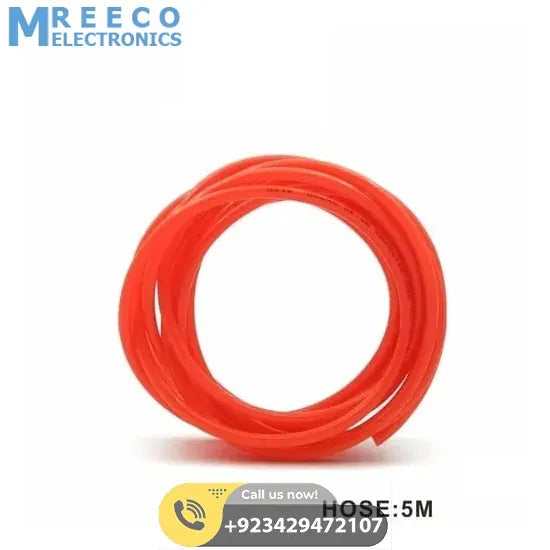

• 1 x 5m Water Pipe.
