  2. Waterproof Ultrasonic Sensor JSN-SR04T Distance Measuring Transducer Sensor For Arduino

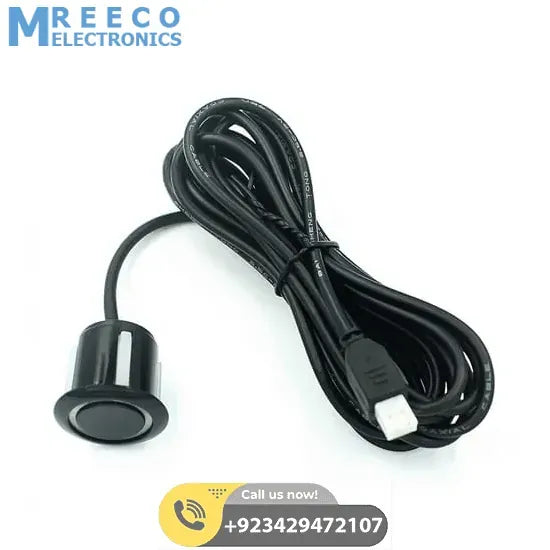

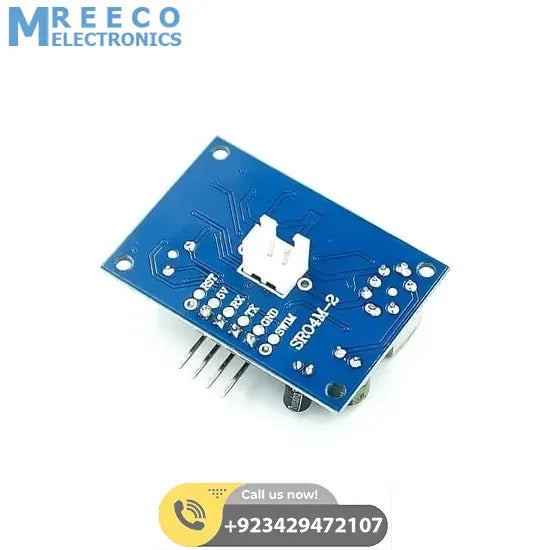

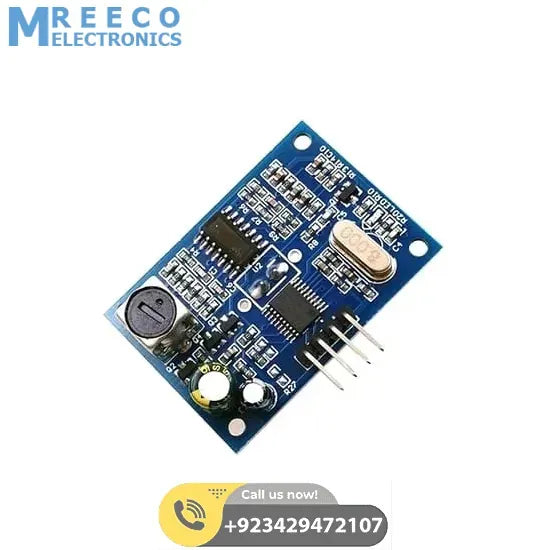

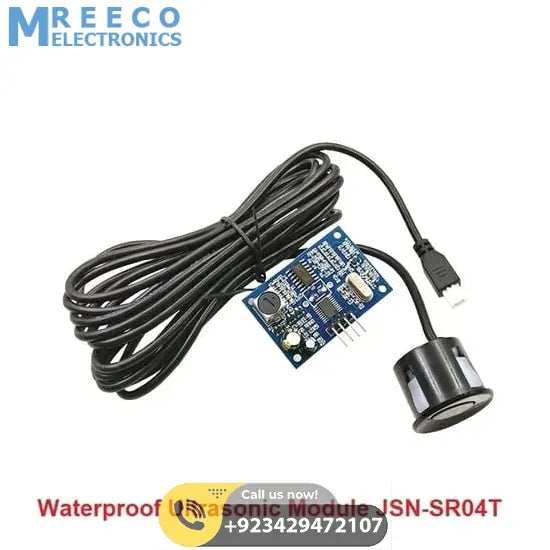

Waterproof Ultrasonic Sensor JSN-SR04T Distance Measuring Transducer Sensor for Arduino - Front View
China

Waterproof Ultrasonic Sensor JSN-SR04T Distance Measuring Transducer Sensor For Arduino

SKU: 637731257786186685Category: Car Electronics
Rs 1,210

Currently sold out

This is a JSN-SR04T waterproof ultrasonic rangefinder module, The use of industrial-grade integrated ultrasonic probe design, which is stable performance. Its usage is as same as HC-SR04, the measurement distance is a...

Ask about this product on WhatsApp
  • Fast deliveryFree shipping on prepaid orders above Rs. 10,000
  • Secure payment100% secure payments by Meezan Bank
  • SupportMonday to Saturday, 11:00 AM to 8:00 PM
  • ReturnsSee our return and refund policy

Description

This is a JSN-SR04T waterproof ultrasonic rangefinder module, The use of industrial-grade integrated ultrasonic probe design, which is stable performance. Its usage is as same as HC-SR04, the measurement distance is accurate- about 0.5cm, the furthest distance can be measured is 4.5m, because it is small so easy to carry, Suitable for a variety of wet and harsh measurement environments. In general, we will use it in horizontal ranging, obstacle avoidance, automated control, monitoring of objects and their movement, traffic control, security and artificial intelligence, educational research.

Features Of W/P Ultrasonic Distance Module JSN-SR04T:

  • small size, easy to use
  • low voltage, low power consumption
  • high accuracy
  • strong anti-jamming
  • integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasion

Specifications Of JSN-SR04T Waterproof Ultrasonic Rangefinder Module :

  1. Operating Voltage: 3.0-5.5V DC
  2. Static Operating Current: 8mA
  3. Operating Current: 30mA
  4. Acoustic Emission Frequency: 40kHz
  5. Maximum range: 4.5m
  6. Minimum range: 20cm
  7. Connection pins: +5V, Trig, Echo, GND
  8. Module Dimensions: 41mm * 28.4mm
  9. Sensitivity: ~0.5cm
  10. Measuring Angle: 45-75°
  11. Operating Temperature: -10 ~ 70 ℃
  12. Storage Temperature: -20 ~ 80 ℃

Interface Of JSN-SR04T With Arduino

Package Include:

  • 1 x JSN-SR04T waterproof ultrasonic rangefinder module
