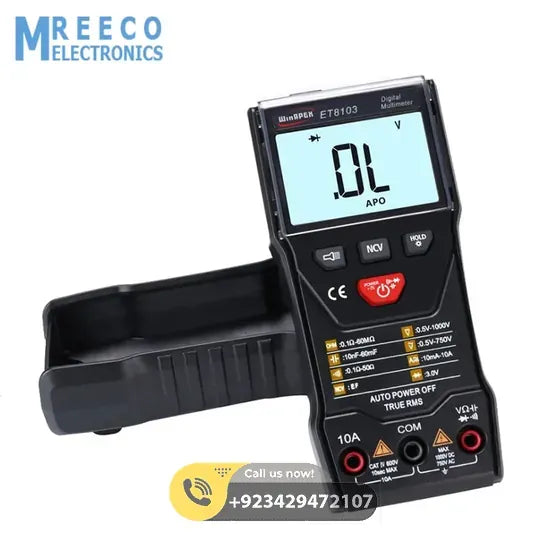

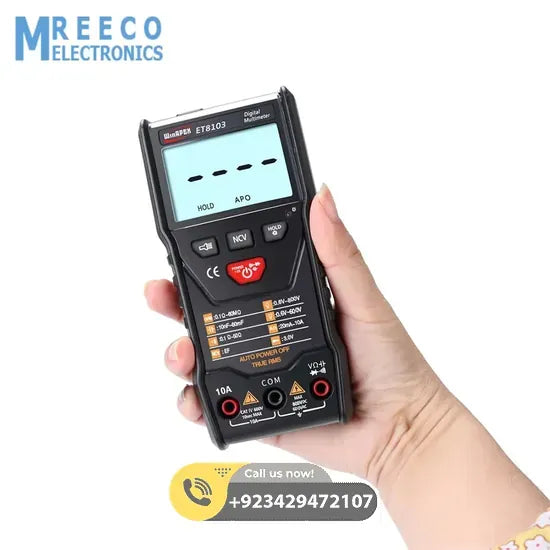

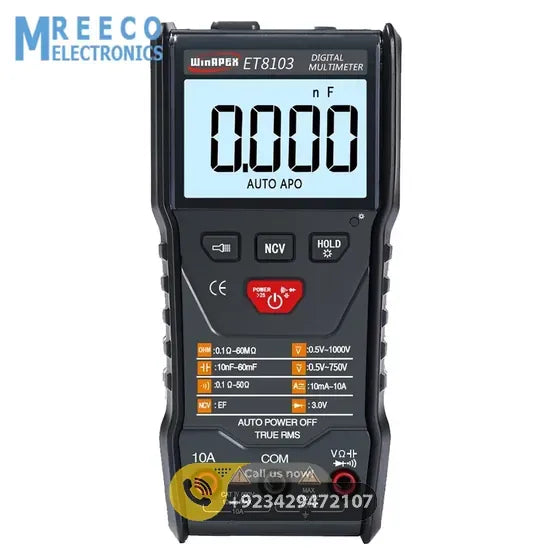

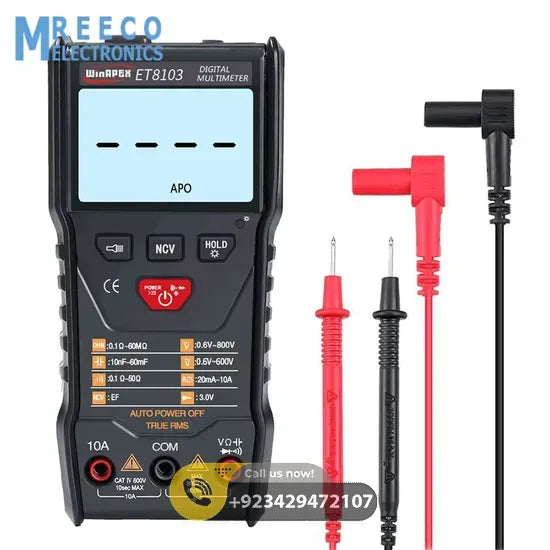

WinAPEX ET8103 LCD Auto Measure Digital Multimeter 6000 Counts

Now that have entered the era of intelligence, multi-function digital multimeters have also been replaced by smart ones. This digital multimeter can not only meet the needs of daily life measurement, but also become a professional measurement teaching tool.

WinAPEX ET8103 LCD Auto Measure Digital Multimeter 6000 Counts Features:

1. Fully intelligent automatic measurement digital multimeter, the digital multimeter in the measurement will automatically recognize and automatically display no need for human operation.
2. 6000 counts and multifunction: display of 6000 counts and test of AC / DC voltage and current, resistance, capacitance.
3. Full protection: the body is equipped with a shockproof sleeve to the instrument case from being damaged due to falling down, giving the body a full of protection, and this protective cover can also be dustproof.
4. Easy to use and take: designed of compact and light, a bracket on the back for easy handling and placement.
5. Functions: LCD digital display, data hold, high voltage DC 800V protection, low battery tips, auto power-off, live wire test, flashlight function.

WinAPEX ET8103 LCD Auto Measure Digital Multimeter 6000 Counts Specifications:

• Material: PVC
• Color: black
• Display: LCD display, 6000 counts
• Power: 2 * AAA battery (not included)
• DC voltage : /60V/600V/800V
• DC voltage resolution: 0.5%+4
• AC voltage : /60V/600V/750V
• AC voltage resolution: 0.8%+3
• DC current : 6A/10A
• DC current resolution: 0.8%+8
• AC current : 6A/10A
• AC current resolution: 1.0%+8
• Resistance : 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
• Resistance resolution: 0.8%+5
• Capacitance : 60nF/600nF/6μF/60μF/600μF/6mF/60mF, 30mF, 30mF (<10mF value just for reference)
• Capacitance resolution: 2.5%+60, 5.0%+10, 10%+5
• True RMS: yes
• NCV: AC non- electric field measurement
• Flashlight function: yes
• Buzzer: 0.1Ω-50Ω
• Automatic: auto recognition according to measurment requirements
• Continuity buzzer: 40Hz-1kHz (N only sine &triangular ,
• other>200Hz waveforms are for reference only)
• Continuity test: about 0.
• Data hold: yes
• LCD backlight: yes
• Low battery tips: yes
• Auto shutdown: about 15 minutes
• Environment: 18℃~28℃ (64℉~82℉) Relative humidity: ≤75%
• LCD size: 50 * 33mm / 2.0 * 1.3in
• Item size: 139 * 63 * 28.5mm / 5.5 * 2.5 * 1.1in
• Item weight: 199g / 7.0ounce
• Package size: 165 * 103 * 34mm / 6.5 * 4.1 * 1.3in
• Package weight: 300g / 10.6ounce

Package list:

• 1 * ET8103 Multimeter
• 1 * Test
• 1 * Use Manual

• WinAPEX ET8103 LCD Display Portable Auto Measure Multimeter AC/DC Voltage Current Capacitance Electric Field Resistance Meter True RMS 6000 Counts Display with Flashlight Function
