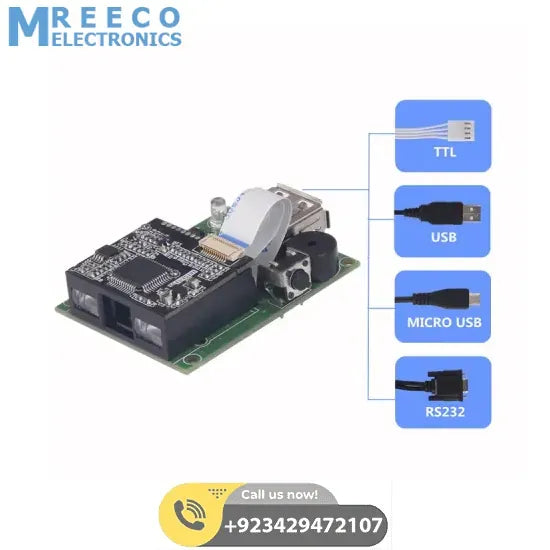

Wired CCD Barcode Scanner Module

Wired

CCD

Wired

CCD

Product Specification

Wired

CCD

CPU

ARM 32-bit Cortex

Optical Source

620nm Visible red light diode

Resolution

2500 pixel

Imaging Sensor

CCD

Trigger Mode

Continuous,Auto-Induction

Indication

Buzzer & LED

Infrared induction distance

150 - 200mm

Decoding Speed

280times/second

Interface

Micro USB,TTL,KB,RS232,USB

Resolution

4mil

Decoding Capability

Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codabar,

Interleaved 2 of 5,ISBN, Code 93, UCC/EAN-128, GS1 Databar etc

Max.Power

700mw

Working Voltage

DC5V

Storage Temperature

-40°C ~ 60°C

Working Temperature

0°C ~ 50°C

Relative Humidity

0 ~ 95%

Weight

5g (scanner without cable and development board)

12g(scanner without cable and with development board)

Dimensions

24*22*9 mm (scanner with cable and development board)

44*33*10 mm (scanner with cable and development board)

Wired

CCD

1. Colour: Black
2. No Driver, plug and play
3. 32 bit processor, More fast than 8 bit and 16 bit barcode scanners
4. Scanning Speed: 280(scans/second), fast scanning rate
5. Support reading bar codes from screen
6. Super scanning and decoding ability, can read incomplete and fuzzy codes
7. Small size, Easy to integrate, high-standard automation and can be embedded into a End devices, especially for limit space application
8. Application fields: Supermarket,Retail,Healthcare,Logistics,Communication,Clothing industry, Power Industry, Kiosk,Locker, Factory assembly line

Package Includes:
