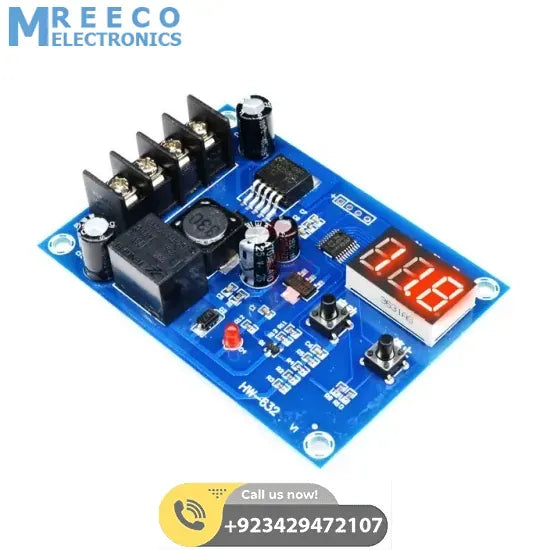

Xh-M603 Dc 12v-24v Voltage Charging Discharge Monitor Relay Switch Battery Protection Module

The XH-M603 is a PCB control module used to charge lithium batteries, Lead-acid, nickel-cadmium, nickel-metal hydride, lithium-ion, and polymer. You can assemble your own Lithium battery charger by using this charger module. The 12v-24v Battery Protection Module can also be used for solar panels. The XH-M603 module is perfect for building a battery charging station, offering a range of protection features and easy-to-set min/max charging voltages. As soon as the desired battery float voltage is reached, the charging circuit is disconnected.

Features of LED Display Automatic ON/OFF Real-Time Voltage Monitor Battery Protection Module:

1. Automatic control circuit connection
2. Automatic charging and power off
3. Real-time voltage monitor
4. Auto save the setting
5. ST core chip
6. LM2596 switch voltage regulator

Xh-M603 Dc 12v-24v Voltage Charging Discharge Specifications::

1. Model:XH-M603
2. Input Voltage:DC 10-30V
3. Display Precision:0.1V
4. Control Precision:0.1V
5. Output Type:direct output
6. Voltage Tolerance:+/-0.1V
7. Application Fields:12-24V storage battery
8. Size;82*58*18mm

Using Method:

1. Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash you can start or stop button to set starting up charge voltage value.
2. Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value.
3. Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings.

Package include :

• 1 x  XH-M603 battery lithium battery charging control module
