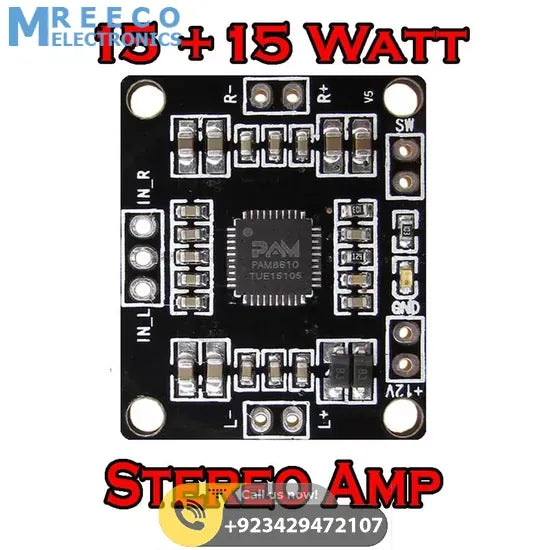

XHM181 Xh M181 PAM8610 12V Dual-channel Stereo Audio Amplifier Board

The PAM8610 is a 10W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM8610 runs off of a 7V to 15V supply at a much higher efficiency than competitors’ ICs. The PAM8610 only requires very few external components, significantly saving cost and board space. The PAM8610 is available in a 40pin QFN 6mm*6mm package.

Features:

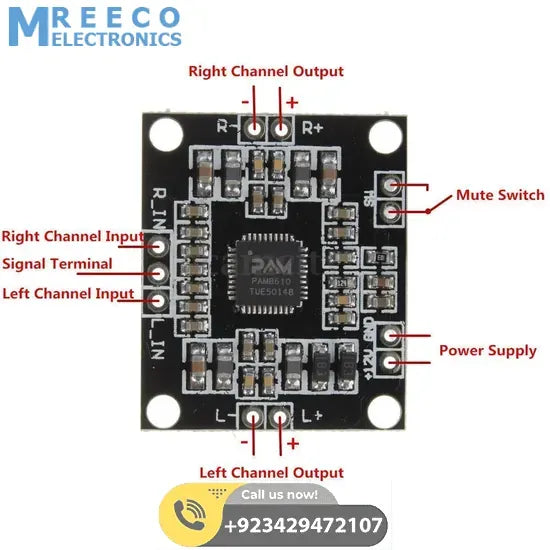

• This plate with a switching function, SW short, will turn off the power amplifier
• Working Mode: Class D (PWM modulation type)

Specifications:

1. Main Chip: PAM8610
2. Power Range: DC 6V-15V (self-protection)
3. Recommended Voltage: DC 12V(2A)
4. Output Power: 10Wx2(8Ω) 15Wx2(4Ω)
5. Frequency Response: 20HZ-15KHZ
6. Static Current: 20MA (DC12V)
7. SNR: 90% Recommended
8. Speakers: 10-100W
9. Input Impedance: 15K
10. Output Impedance: 4-8Ω
11. Harmonic Distortion: <0.1%
12. Dimensions in mm (LxWxH): 30 x 25 x 4
13. Weight(gm): 12

How to use:

1. The power supply voltage limit is 16.5V, do not use more than this voltage.
2. The power supply is recommended for 12v, 3A power supply filter better
3. 4-8 inch stereo speakers recommended.
4. Do not short-circuit the audio output to each other or shorted to ground
5. Carefully check before electricity, ensure the wiring is correct before electricity.
