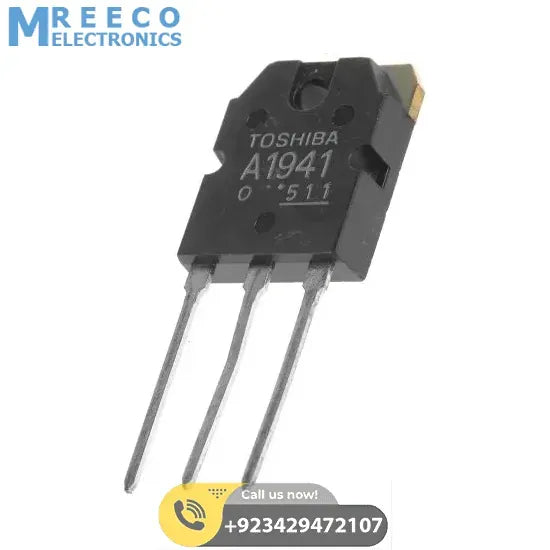

PNP Power Transistor Toshiba A1941

The power transistor is a three-terminal semiconductor device used to amplify and switch electronic signals and electrical power. It is a junction transistor designed to handle high current and power; used chiefly in audio and switching circuits.

Specifications:

1. Polarity: PNP
2. Pins: 3
3. Material: Silicon
4. Maximum Collector Power Dissipation (Pc): 100 W
5. Maximum Collector-
   1. Base
   Voltage |Vcb|: -140 V
6. Maximum Collector-
7. Emitter

Voltage |Vce|: -140 V

Maximum

Emitter

-

1. Base
Voltage |Veb|: -5 V
2. Maximum Collector Current |Ic max|: -10 A
3. Max. Operating Junction Temperature (Tj): 150 °C
4. Transition Frequency (ft): 30 MHz
5. Collector Capacitance (Cc): 480 pF
6. Forward Current Transfer Ratio (hFE), MIN: 55

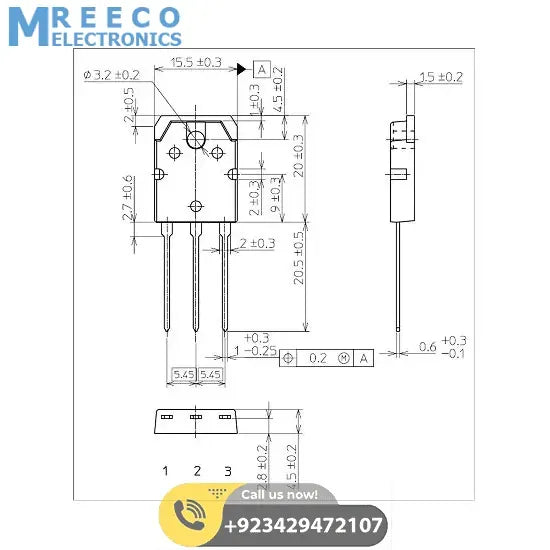

7. Dimension: 15.5×20.0×4.5

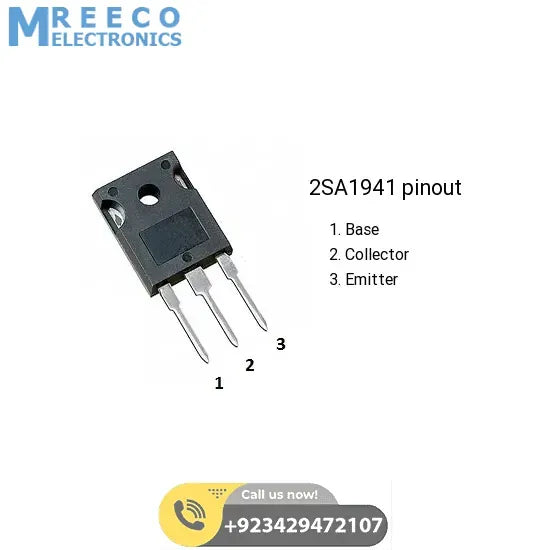

Pin Configuration:

1. Base
2. collector
3. Emitter

Datasheet:

Transistor A1941 Datasheet

Buy High Power Transistor Toshiba A1941 at Pakistan's Best Online Store at cheap price. Here you get a variety of High-speed switching Transistors. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Include:

1x Power Transistor Toshiba A1941
